 Post subject: Traiphum's 3x3x10
PostPosted: Tue Jul 05, 2011 11:43 pm
Offline
User avatar

Joined: Mon Dec 08, 2008 10:48 pm
Location: Thailand
Now waiting the sticker

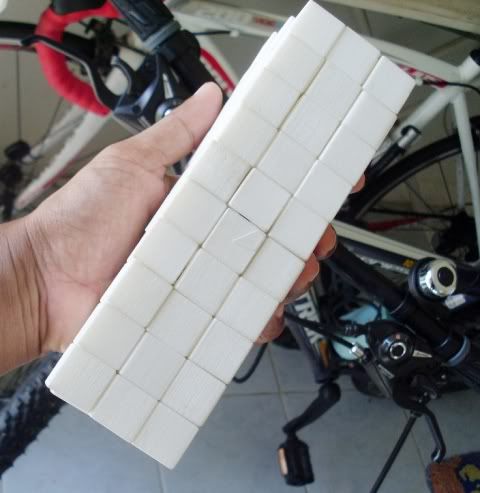

take a look some picture.

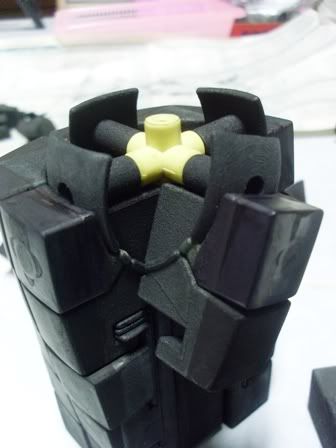

here are some original parts >>
it 's stiil white

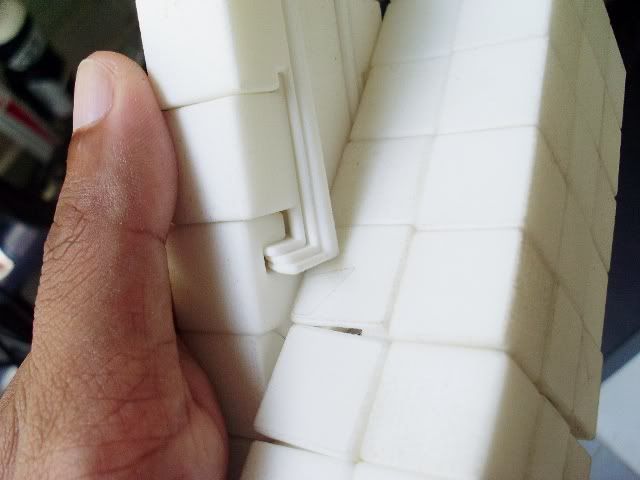

because of this result, it alway loosen when turn 90 degree, so I make it pillowed shape



_________________
My designed FaceBookPage TraiphumPuzzles
Youtube Channel : Traiphumi


Last edited by traiphum on Wed Jul 06, 2011 8:37 pm, edited 1 time in total.

Top
 Profile

 Post subject: Re: Traiphum's 3x3xX
PostPosted: Wed Jul 06, 2011 12:28 am
Offline
User avatar

Joined: Fri Dec 08, 2000 2:32 am
Location: San Francisco, CA
Very nice!


Top
 Profile

 Post subject: Re: Traiphum's 3x3xX
PostPosted: Wed Jul 06, 2011 12:34 am
Offline
User avatar

Joined: Sat Mar 06, 2010 8:20 pm
3x3x10?!

_________________
-Jacob Hamrick
2x2 PB: 2.36
3x3 PB: 19.89


Tony Fisher wrote:
MaCheezm0 wrote:
2nd layer using Fisher parts


I very much hope you mean Fisher Cube parts.


Top
 Profile

 Post subject: Re: Traiphum's 3x3xX
PostPosted: Wed Jul 06, 2011 1:02 am
Offline
User avatar

Joined: Thu Sep 24, 2009 12:21 pm
Location: Chichester, England
3D printed parts??? (Well, at least some of them anyhow).

_________________
3x3x3 single: 5.73 seconds.
3x3x3 average of five: 8.92 seconds.
3x3x3 average of twelve: 9.77 seconds.

Buy the Curvy Copter Skewb, NovaMinx, and more here!


Top
 Profile

 Post subject: Re: Traiphum's 3x3xX
PostPosted: Wed Jul 06, 2011 9:43 am
Offline
User avatar

Joined: Fri Mar 31, 2006 8:18 am
Location: DaLian, China
Nice work !
How about the thickness, is it strong enough ?
I would like to make something by shapeways printing, but I still have no idea with the materials.
Attachment:
img.jpg [ 12.29 KiB | Viewed 3949 times ]

_________________
cheeses are available


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Wed Jul 06, 2011 8:54 pm
Offline
User avatar

Joined: Mon Dec 08, 2008 10:48 pm
Location: Thailand
@Ayi/ I cant guess how strong of it, when I turn it hardly it still work. I very careful when I turn it.
That thickness is 1.5mm.

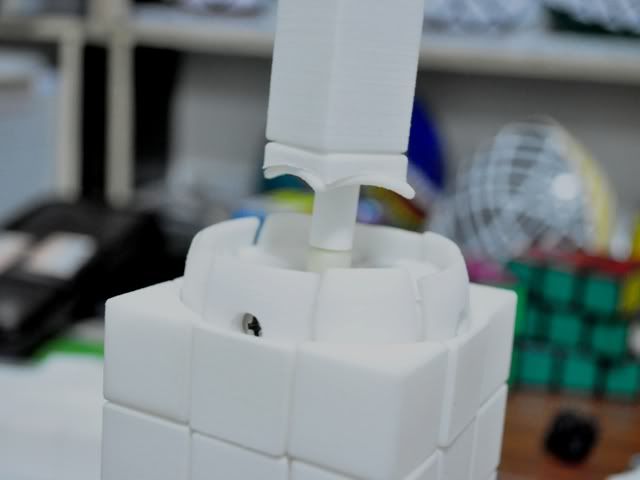

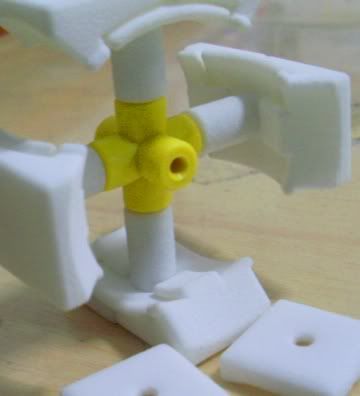

some more picture >> and VDO

Image Image

Image Image

Image Image

A group of 3x3x......

Cuboid stair to.......(some where) :D
hope you like cuboid :)
more picture

_________________
My designed FaceBookPage TraiphumPuzzles
Youtube Channel : Traiphumi


Last edited by traiphum on Wed Jul 06, 2011 9:04 pm, edited 1 time in total.

Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Wed Jul 06, 2011 9:03 pm
Offline

Joined: Sun Jan 02, 2011 6:48 pm
Location: Canada
I know somme one that would do anything to have those cuboids :shock: . And nice :P .

_________________
katsmom wrote:
My grapes are making noises right now. They keep saying drink me, drink me.


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Wed Jul 06, 2011 9:19 pm
Offline
User avatar

Joined: Thu Dec 30, 2010 12:32 am
That is amazing! It looks like it was 3-D printed, does that mean that it is on Shapeways?


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Wed Jul 06, 2011 9:52 pm
Offline
User avatar

Joined: Fri Dec 08, 2000 2:32 am
Location: San Francisco, CA
Hah, I thought it was pillowed but wasn't certain given the angle of the teaser photo.

In context, it's stunning how far the 3x3xN family can get before it needs pillowing. I suppose it makes sense - the 2x2x13 (Oskar's Unlucky Twist) can be made without pillowing, then the 3x3x9, then.... the 4x4x? 5x5x? and finally the 6x6x6

Again, great work.


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Wed Jul 06, 2011 10:44 pm
Offline
User avatar

Joined: Mon Dec 08, 2008 10:48 pm
Location: Thailand
Superbud9123 wrote:
That is amazing! It looks like it was 3-D printed, does that mean that it is on Shapeways?

Yes, it is a 3D print parts.
Joshua Bell wrote:
.....In context, it's stunning how far the 3x3xN family can get before it needs pillowing. I suppose it makes sense - the 2x2x13 (Oskar's Unlucky Twist) can be made without pillowing, then the 3x3x9, then....

My first designed is proportional shape but it has a little bit mistake on drawing.
that you can see in orginal part picture.
Because I already have printed parts : anyway for approving it a good turning if still keep it proportional shape : the best way transformed it to pillowed

BTW : my original mechanism drawing same as regular 3x3x4(3x3x6&3x3x8)

_________________
My designed FaceBookPage TraiphumPuzzles
Youtube Channel : Traiphumi


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Wed Jul 06, 2011 11:43 pm
Offline
User avatar

Joined: Fri Mar 31, 2006 8:18 am
Location: DaLian, China
traiphum wrote:
@Ayi/ I cant guess how strong of it, when I turn it hardly it still work. I very careful when I turn it.
That thickness is 1.5mm.


Thank you very much !!!
Maybe it is not so far from your 3x3x11 :)

_________________
cheeses are available


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Thu Jul 07, 2011 1:34 am
Offline
User avatar

Joined: Thu Sep 24, 2009 12:21 pm
Location: Chichester, England
Awesome! Well done, it looks like an awesome puzzle. :)

_________________
3x3x3 single: 5.73 seconds.
3x3x3 average of five: 8.92 seconds.
3x3x3 average of twelve: 9.77 seconds.

Buy the Curvy Copter Skewb, NovaMinx, and more here!


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Thu Jul 07, 2011 2:21 am
Offline
User avatar

Joined: Sun May 30, 2010 4:58 pm
Location: United Kingdom
This is just incredible. I love all of your cuboid puzzles and this is by far the most impressive.
Congratulations :)

_________________
Website | YouTube Channel |

Tony Fisher wrote:
Please can you reduce the size of your photos when posting. To see the whole of this thread I have to walk into the next room.


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Thu Jul 07, 2011 5:17 am
Offline
User avatar

Joined: Sat Jan 16, 2010 11:48 am
Location: In Front Of My Teraminx (saying WTF?)
@ Superbud: I'm sure if you have 400-600$ to spend it'll be on shapeways... excluding markup :roll: this is too big to be shapie'd

_________________
My Shapeways Shop!
My Designs
My Official Results
My Website on Twisty Puzzles with Gears

Grégoire Pfennig


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Thu Jul 07, 2011 5:33 am
Offline

Joined: Sun Mar 27, 2005 7:37 pm
Fantastic puzzle. I still can't get enough of cuboids.

Joshua Bell wrote:
it's stunning how far the 3x3xN family can get before it needs pillowing

Technically they never need pillowing.

_________________


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Thu Jul 07, 2011 7:12 am
Offline
User avatar

Joined: Thu Sep 17, 2009 6:07 am
Location: Germany, Bavaria
Some things are amazing, because they exist. This puzzle is one of them!
Well done!
The noise in the video is not so scratchy as Shapeways WSF puzzles produce it, usually.
Have you used a different printing shop or different material?

_________________
My collection at: http://sites.google.com/site/twistykon/home


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Thu Jul 07, 2011 8:14 am
Offline
User avatar

Joined: Fri Feb 08, 2008 1:47 am
Location: near Utrecht, Netherlands
This puzzle was printed by Geert on a printer owned by TNO and it was tumble polished, so I guess the material is similar to Polished WSF. The puzzle also has solid pieces and it's partially made out of the normal plastic Traiphum used to build the pillowed shape. All of these things would affect the sound.
The resolution of these printer is not nearly as good as those of Shapeways, and they're not really open to the general public. Oskar did use them for his exchange puzzle, the Minimal Twist - but the bill for that was really quite high compared to a regular Shapeways order.

Excellent work! I am sorry I had not realized the issue about the parts falling out, when I was increasing the part radius I was only thinking about the part strength, not about the fact that a larger radius would make them fall out more easily. Excellent work making it pillowed, it looks and functions very well!

_________________
Tom's Shapeways Puzzle Shop - your order from my shop includes free stickers!
Tom's Puzzle Website


Buy my mass produced puzzles at Mefferts:
- 4x4x6 Cuboid for just $38
- Curvy Copter for just $18
- 3x4x5 Cuboid for just $34


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Thu Jul 07, 2011 8:47 am
Offline

Joined: Thu Jan 20, 2011 7:37 pm
I think the pillowing looks awesome! great job.

_________________
PBs:single/Ao5/Ao12
3x3: 4.76/8.13/8.80
pyraminx: 0.89/1.87/2.19
4x4:36.50/45.59
5x5: 1:21.50/1:41.50
7x7: 4:10.50


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Thu Jul 07, 2011 1:48 pm
Offline
User avatar

Joined: Fri Dec 08, 2000 2:32 am
Location: San Francisco, CA
Tony Fisher wrote:
Technically they never need pillowing.


True! There's a distinction between pillowing (etc) necessary in theory - like the 7x7x7 - and pillowing (etc) necessary in practice due to engineering/material constraints.

Some day we'll be 3D-printing these out of diamond and/or buckytube scaffolds with teflon-like surfaces and we'll be quibbling about the minimum width - in angstroms - you can get away with.


Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Thu Jul 07, 2011 6:33 pm
Offline
User avatar

Joined: Wed Jan 07, 2009 6:46 pm
Location: Evanston, IL
"...And he's building the stairway to heaven..."

With apologies to Led Zeppelin.

-Eitan

_________________
Eitan = "EIGHT-ahn"
Buy a Radio Cube 3! Only $150 at Eitan's Shapeways Shop
Check out my video: Twisty Puzzles a la Vi



Top
 Profile

 Post subject: Re: Traiphum's 3x3x10
PostPosted: Fri Jul 08, 2011 1:45 am
Offline
User avatar

Joined: Mon Dec 08, 2008 10:48 pm
Location: Thailand
Thank you Tom for all your helpful. and your explain to every body.
(perhaps I'll ask your helpful again)

This puzzle was printed at last mid year but result of falling down parts take me stop and think so much how can make it working. that without pillowing but anyway.
How about cubic 7x7 style, no it will very big and heavy weight, through it now also heavy

Geert explain to me about strength of my drawing, I understand because this puzzle has some very thin and long parts. and I never have experience on 3D drawing.

Improving the parts : Finaly I choose pillowing way,I applied with some part from regular 3x3 for 8 pieces and other is epixie technic

_________________
My designed FaceBookPage TraiphumPuzzles
Youtube Channel : Traiphumi
